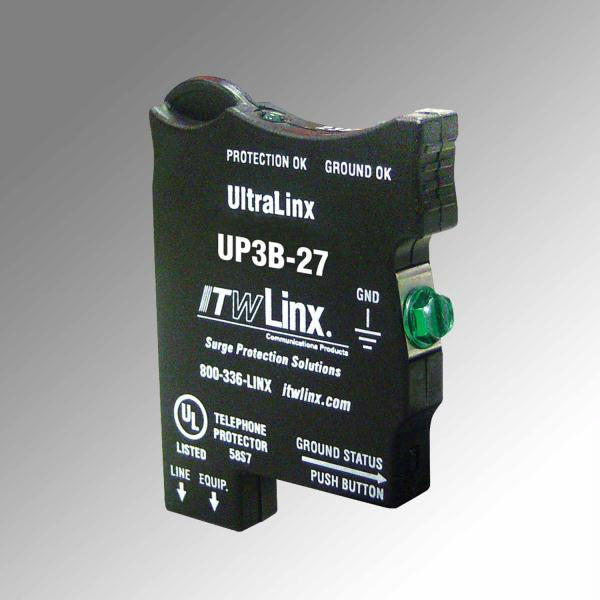

Ultralinx 66 Block 27v Clamp

$13.93
  • Ultralinx 66 Block 27v Clamp
  • 66 Block Primary Or Secondary 27v Surge Protector
  • Ul Primary And Secondary Listed With 350ma Fuse For Voice/fax/modem Line (27v)
  • Dual Indicator Lights: Protection Ok And Ground Connection Ok
  • Solidstate Protection
  • Single Pair Protection: Protect Only The Lines Requiring Protection
  • Ideal For Retrofit Applications: Just Remove The Bridging Clips From The Block And Replace Them With The Protector Add The Ground Connection And The Pair Is Connected
  • Grounding Requirements: Fieldinstalled Solid Copper Wire
  • Recommended Grounding Impedance: <0.5 Ohm
  • Fuse Rating: 350ma (1.6 Ohms)
  • Signal Perfect Circuitry
  • Clamping Level: 27v
  • Response Time: 15 Nanoseconds
  • Capacitance: <50pf
  • Suppression Modes: Metallic And Longitudinal
  • Wires Protected: 2wires 1 Pair
  • Termination Type: 66 M Blocks
  • Brand: Itw Linx
